Brochure for Streamer 4000

Live video streaming over bonded 4G LTE, 5G wireless

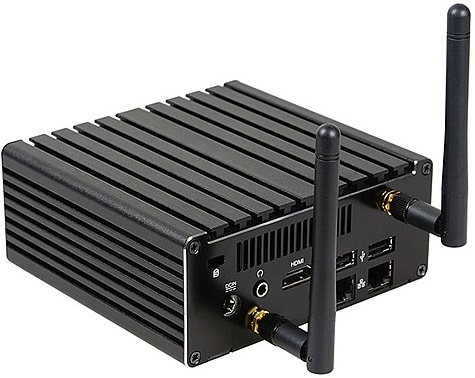

The Streamer is an ultra portable palm sized device that enables live streaming over bonded IP connections such as 4G LTE, 5G wireless cellular cards, DSL, cable and/or fiber. Simply connect your video switcher, hardware encoder (or your encoder that is installed on your laptop) to the Streamer and start streaming to your video server or CDN as usual. Streamer is ideal for streaming live video and audio content to a website from anywhere you have cellular coverage. Up to 4 Internet connections can be combined to increase the available bandwidth for HD quality video and to provide high reliability video streaming. Streamer will accept various types of video streams via an Ethernet cable that is connected to the Streamer. Streamer will bond the available Internet connections that are plugged into the unit and will send the stream to your preferred CDN (Content Delivery Network) through Mushroom Networks cloud relay points. The relay service is transparent to your application.

Features

Transparent streaming over bonded Internet

Streamer replaces or augments your wired Internet line in your existing streaming system with the bonded Internet connections. You can seamlessly plug in an Ethernet cable to connect your laptop, encoder or switcher to the Streamer and start streaming.

Support for most types of video servers

Streamer supports all of the CDNS and popular video servers including Youtube*, Akamai*, Limelight*, Facebook*, LiveStream*, Justin.tv*, Ustream* and many others.

Support for most types of video source

Streamer supports most of the popular video encoders including Flash* Media Live Encoder, Wirecast*, Tricaster*, TouchStream* etc.

High quality video streaming

The cutting-edge resource allocation and bonding algorithms provides a high quality video stream with high resolution and high frame rate.

High speed Internet access & WiFi

Streamer can also be used to access the Internet over the bonded connection.

Specifications

Streamer 4000 Hardware Specifications

Construction: Lightweight aluminum alloy with extruded aluminum panel
Mechanical dimensions: 116(W) x 110(D) x 49(H) mm, 4.57″(W) x 4.33″(D) x 1.93″(H), ultra portable
Weight: 3.0 lbs (1.4 kg)
Input power requirement: 9V ~ 24V DC jack. Adaptor: AC 90~240V / DC 12V 3A / 36W
USB ports: 4 (for cellular data)
LAN ports (Gb, auto-sensed): 1 GbE Ethernet
Wired WAN ports (Gb, auto-sensed): 1 GbE Ethernet
Wi-Fi: Builtin 802.11 a/b/g/n
Certifications: FCC, CE, RoHS, ErP, UL, cUL
Operating Temperature: 0 – 40 Celsius with air flow.
Operating Humidity Range: 20-90%, non-condensing
Storage Temperature Range: -20 – 80 Celsius
Cooling: Fanless passive cooling

Streamer 4000 Software Specifications

Max throughput: 1 Gbps (standalone), 30 Mbps (RTMP)
Device management: Web based (via cloud or local Ethernet), SNMP, Remote Syslog, Email alerts.
Video Armor: Outages/fades on the 3G/4G/LTE cards are shielded from video
CDN Support: RTMP based video servers/CDNs & others
Internet Access: High speed Internet access via Ethernet
Firewall / Routing: Advanced firewall and routing capabilities

*Are trademarks of associated third party companies and are referenced for information purposes only.
