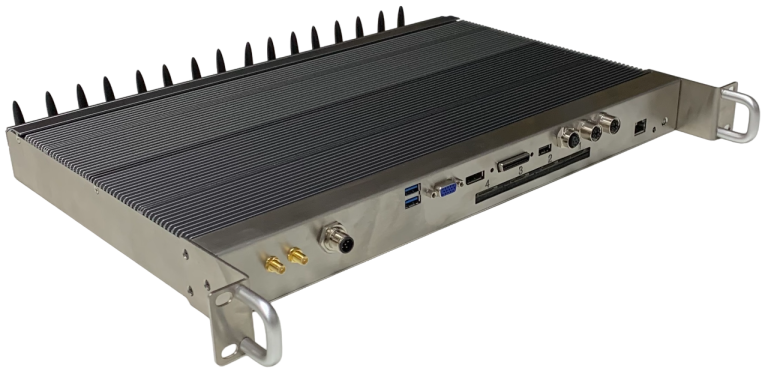

Portabella 4000it Hardware Specifications
Construction: Aluminum chassis, stainless steel wire drawing frame
Mechanical dimensions: 430 x 283.05 x 44.5 mm
Input power requirement: DC 48/72/110V input, 4-pin connector(M12),
Modem slots: 4 embedded m2 modems + 1 WiFi
3G/4G/LTE antenna connectors: SMA-Female
LAN ports (GbE, auto-sensed): 1 GbE Ethernet with M12 lock connector
Wired WAN ports (GbE, auto-sensed): 1 GbE Ethernet with M12 lock connector
WiFi Access Point / WiFi WAN: Builtin 802.11 a/g/n
Sim slot size: four 2FF mini sim slots
Certifications / Compliances: EN50155 & E-Mark & CE & FCC Class B certificates. EN45525-2 conformity.
Vibration Endurance: MIL-STD-810G, EN50155
Shock: MIL-STD-810G, EN501550
Operating Temperature: EN50155 TX: -40～60℃
Storage Temperature Range: -40 – 85 Celsius
Storage Humidity Range: 10~90% @40°C, Non-condensing
Cooling: Fanless passive cooling
Portabella 4000it Software Specifications
Max throughput: 1 Gbps (load balancing), 250 Mbps (peered)
Max number of concurrent IP sessions: 1,000,000
Device management: Cloud based, SNMP, Remote Syslog, Email alerts.
DHCP and DNS servers: DNS relay, Parallel DNS optimization, DHCP server.
DDNS: Support for dynamic DNS for multiple interfaces
WAN Configuration: Static IP, PPPoE, DHCP or passthrough. Failover-only or aggregate modes for cellular and other WAN ports. Interface binding.
Routing: NAT and IP forwarding, QoS and inbound/outbound VOIP quality management
