Brochure for Streamer 8000i

Live video streaming over bonded 3G/4G/LTE wireless

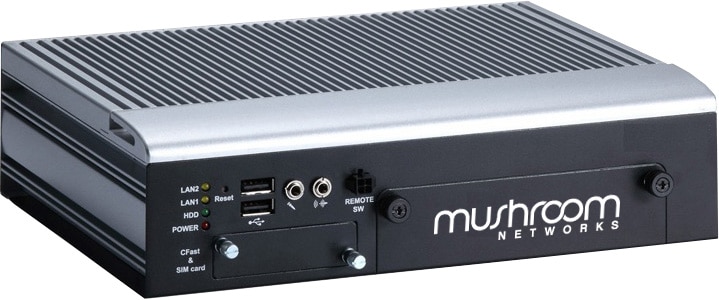

Streamer 8000i is a portable ruggedized device that enables live streaming over bonded 3G, 4G, LTE wireless built-in modems. Simply pop-in your sim cards from your carrier and connect your video switcher, harware encoder (or your encoder that is installed on your laptop) to the Streamer and start streaming to your video server or CDN as usual. Streamer is ideal for streaming live video and audio content to a website from anywhere you have cellular coverage. Up to 8 wireless Internet connections plus one wired Ethernet connection can be combined to increase the available bandwidth for HD quality video and to provide high reliability video streaming. Streamer will accept various types of video streams via an Ethernet cable or wifi that is connected to the Streamer. Streamer will bond the available Internet connections that are plugged into the unit and will send the stream to your preferred CDN (Content Delivery Network) through Mushroom Networks Cloud Relay points. The relay service is transparent to your application.

Features

Transparent streaming over bonded Internet

Streamer replaces or augments your wired Internet line in your existing streaming system with the bonded Internet connections. You can seamlessly plug in an Ethernet cable to connect your laptop, encoder or switcher to the Streamer and start streaming.

Support for most types of video servers

Streamer supports all of the CDNS and popular video servers including Youtube*, Akamai*, Limelight*, Facebook*, LiveStream*, Justin.tv*, Ustream* and many others.

Portabella bonding tunnels have built-in security option with AES 256 encryption.

Support for most types of video source

Streamer supports most of the popular video encoders including Flash* Media Live Encoder, Wirecast*, Tricaster*, TouchStream* etc.

High quality video streaming

The cutting-edge resource allocation and bonding algorithms provides a high quality video stream with high resolution and high frame rate.

High speed Internet access & WiFi

Streamer can also be used to access the Internet over the bonded connection.

Specifications

Portabella 8000i Hardware Specifications

Construction: Aluminum extrusion and heavy-duty steel
Mechanical dimensions:
244(W) x 180.5(D) x 65.1(H) mm, 9.6″(W) x 7.1″(D) x 2.56″(H)
Input power requirement: 12-36 VDC (typical 24VDC)
Modem slots: 8 embedded mPCIe modem ports + 1 WiFi
3G/4G/LTE antenna connectors:
 SMA-Female
LAN ports (GbE, auto-sensed): 1 GbE Ethernet with M12 lock connector
Wired WAN ports (GbE, auto-sensed): 1 GbE Ethernet with M12 lock connector
WiFi Access Point / WiFi WAN: Builtin 802.11 a/g/n
Sim slot size:
 eight 2FF mini sim slots
Certifications / Compliances: CE, EN50155, EN50121 certified, FCC compliance, EN45545-2 compliance
Vibration Endurance:
3 Grms (5-500Hz, X, Y, Z directional Random) (IEC60068-2-34), MIL-STD-810G, Method 514.6, Category 4 and 11 and 20
Shock:
50G, MIL-STD-810G Method 516.6, procedure 1, peak 20g 11ms
Operating Temperature:
 -40 – 70 Celsius (-40 to 158 Fahrenheit)
Storage Temperature Range: -40 – 80 Celsius (-40 to 176 Fahrenheit)
Storage Humidity Range:
 5%-95%, non-condensing
Cooling:
 Fanless passive cooling

Portabella 8000i Software Specifications

Max throughput: 100 Mbps (peered), 30Mbps (RTMP)
Device management: Web based (via cloud or local WiFi), SNMP, Remote Syslog, Email alerts.
Video Armor: Outages/fades on the 3G/4G/LTE cards are shielded from video
CDN Support: RTMP based video servers/CDNs & others
Internet Access: High speed Internet access via built-in WiFi
Firewall / Routing: Advanced firewall and routing capabilities

*Are trademarks of associated third party companies and are referenced for information purposes only.
