Configuration guide
What is the recommended VOM configuration for Teleporter system?
Search or browse documentationOlder model applicability
This article names Teleporter, which is end-of-life. Other devices mentioned may have different requirements. Check the current model and configuration before applying these instructions. Current Streamer models use an external encoder with the selected video software and relay setup.

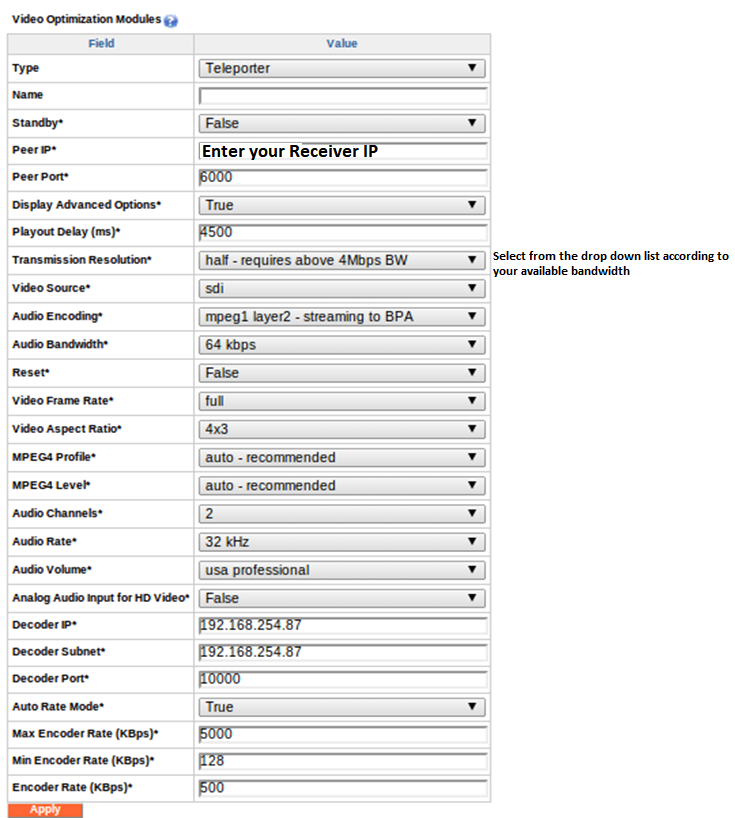

Current Portabella and Streamer modelsVOM Configuration For Teleporter field unit:

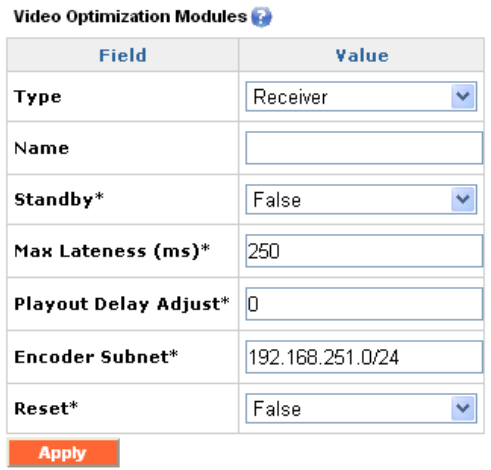

VOM Configuration For BPA (Receiver) field unit:
Also, you will need to select one of the HD resolutions listed below on your camera:
1080i @ 59.94
1080i @ 50
720p @ 59.94
720p @ 50
480 (4:3)
576 (4:3)
480 (16:9)
576 (16:9)
