Teleporter VOM Configuration Guidelines
Search or browse documentationOlder model applicability
This article names Teleporter, which is end-of-life. Other devices mentioned may have different requirements. Check the current model and configuration before applying these instructions. Current Streamer models use an external encoder with the selected video software and relay setup.
Current Portabella and Streamer modelsThis FAQ presents a high-level overview of the Teleporter VOM (Video Optimization Module) parameters, showing Mushroom Networks recommended values, as well as which values should not be modified unless directed to do so by Mushroom Networks.
DO NOT CHANGE THE LAN IP OF THE TELEPORTER OR BPA UNIT! The encoder and decoder must be in the same respective subnets. Consult with Mushroom Networks prior to changing.

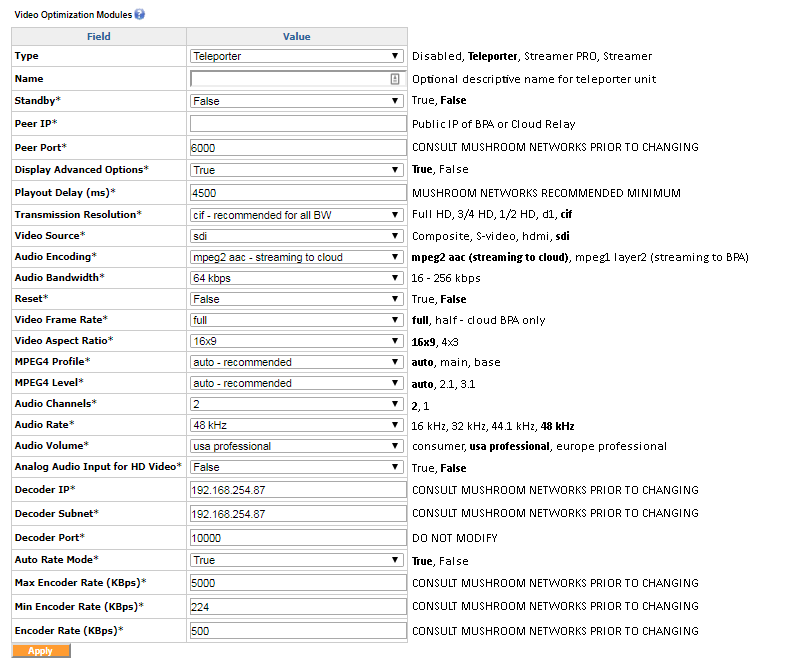

Below is the VOM configuration screen from the Teleporter, with default values in bold. Note that “Display Advanced Options” is set to “True” which results in the following complete list of parameters:

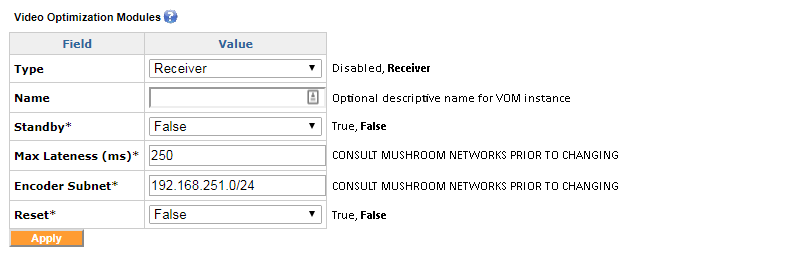

Below is the VOM configuration screen from the BPA Receiver Unit, with default values in bold:
