How do I prioritize (set QoS) for VOIP / SIP traffic?

Using the application aware traffic filtering capability, one can reserve and also assign high priority for SIP traffic. It is important to “Qos Shape” your WAN link (via ADVANCED) prior to applying any QoS Reservations.

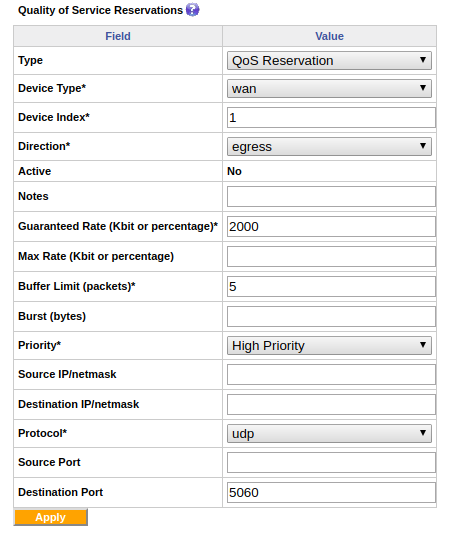

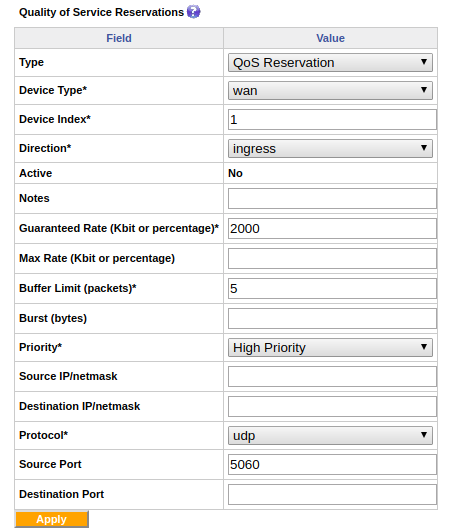

The below example configuration assigns 2mbps guaranteed rate and high priority for VoIP traffic, assuming SIP traffic uses UDP protocol with port number 5060. Also note that you can apply the filters depending on the IP address as well.
