How do I prioritize VLL traffic using QoS?

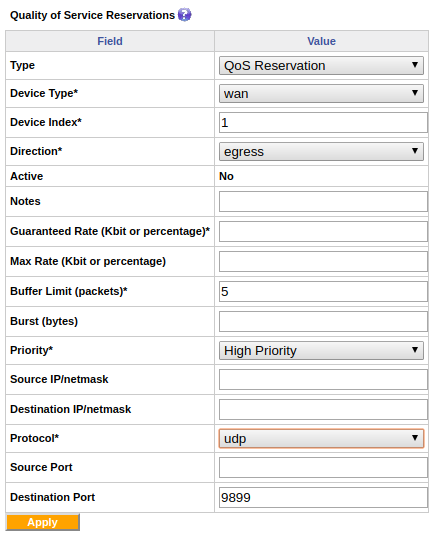

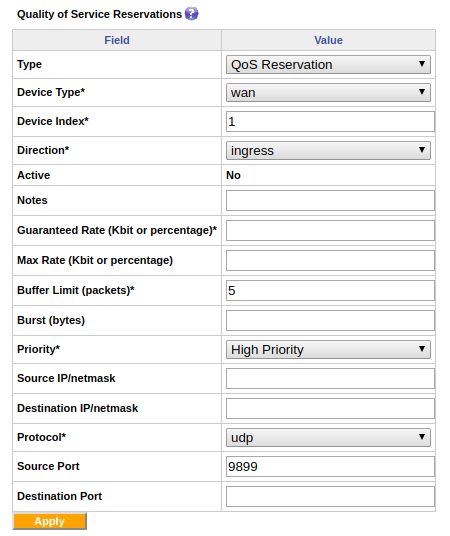

Under Advanced tab you can add QoS Reservation rules in both egress and ingress directions for all your interfaces included in the VLL configuration. The port 9899 should be specified in the destination or source field depending on the egress or ingress direction of the traffic, respectively. Since VLL traffic uses UDP ports, protocol field can be specified as UDP.

Note: Qos shapers would also be needed to make QoS reservations work. You can refer here for better explanation.
