Mushroom Networks Documentation

Streamer VOM Configuration Guidelines

This FAQ presents a high-level overview of the Streamer VOM (Video Optimization Module) parameters, showing Mushroom Networks recommended values, as well as which values should not be modified unless directed to do so by Mushroom Networks.

DO NOT CHANGE THE LAN IP OF THE STREAMER OR BPA/RELAY UNIT!  The encoder and decoder must be in the same respective subnets.  Consult with Mushroom Networks prior to changing.

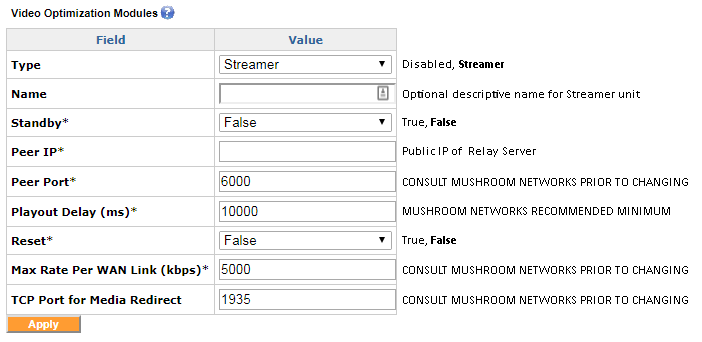

Below is the VOM configuration screen from the Streamer, with default values in bold:

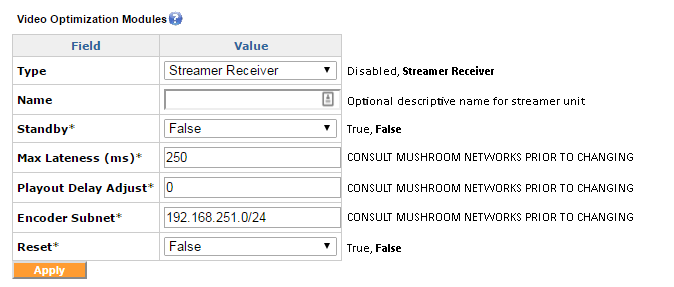

Below is the VOM configuration screen from the Relay Unit, with default values in bold:

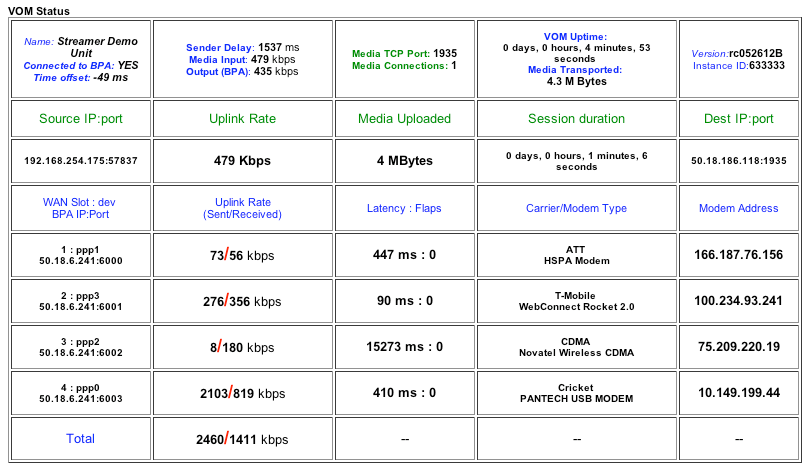

Make sure that the streamer is connected properly to the receiver. You can check in the VOM status section and should be able to see “Connected to BPA: YES”.
