How can I setup VLAN with tagging?

Please refer to this link, to make sure that VLAN access is enabled.

This feature is accessed by clicking the “Add” button next to “VLAN setup” on the “ADVANCED” menu:

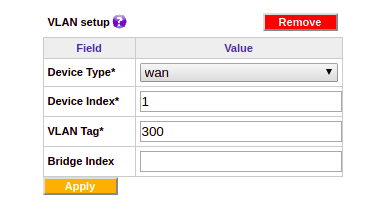

The following screen will be seen:

VLAN tags can be set for WAN, LAN, and Cellular interfaces. The “VLAN Tag” field will contain the tag number, and “Bridge Index” will contain the bridge index, should be 1.

For example to add a VLAN 100 tag for LAN 1, you should configure as seen below:
