How can I put a specific LAN user traffic on a certain WAN line

Search or browse documentation

  1. Identify the LAN user’s IP, e.g 10.0.10.121
  2. Login to Mushroom’s graphical user interface
  3. Select the ‘Advanced’ tab
  4. Select ‘Add’ under ‘Interface Binding’ subsection

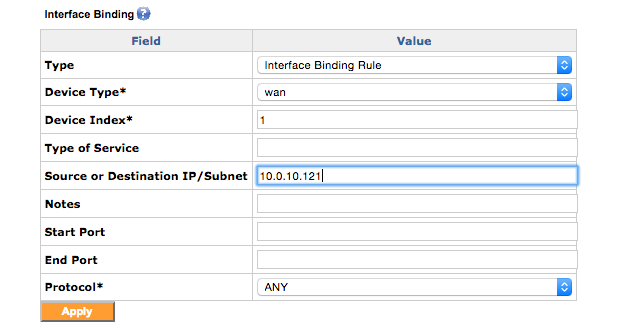

  5. Add a rule for the LAN user (Following is an example screenshot to bind a LAN user with an IP of 10.0.10.121 to always use WAN1)

screen shot 2015 06 10 at 10.15.28 pm
