Portabella 4000 Hardware Installation Guide

Connection Diagram for Portabella 4000:

https://support.mushroomnetworks.com/hc/en-us/articles/360053957834-Connection-Diagram-for-Portabella-4000



Rack mount for 4000 unit:

https://support.mushroomnetworks.com/hc/en-us/articles/360055836133-Rack-mount-for-4000-unit-



DIN Rail Mount for 4000 Unit:

https://support.mushroomnetworks.com/hc/en-us/articles/360054055754



Wall Mount for 4000 Unit:

https://support.mushroomnetworks.com/hc/en-us/articles/360054055814

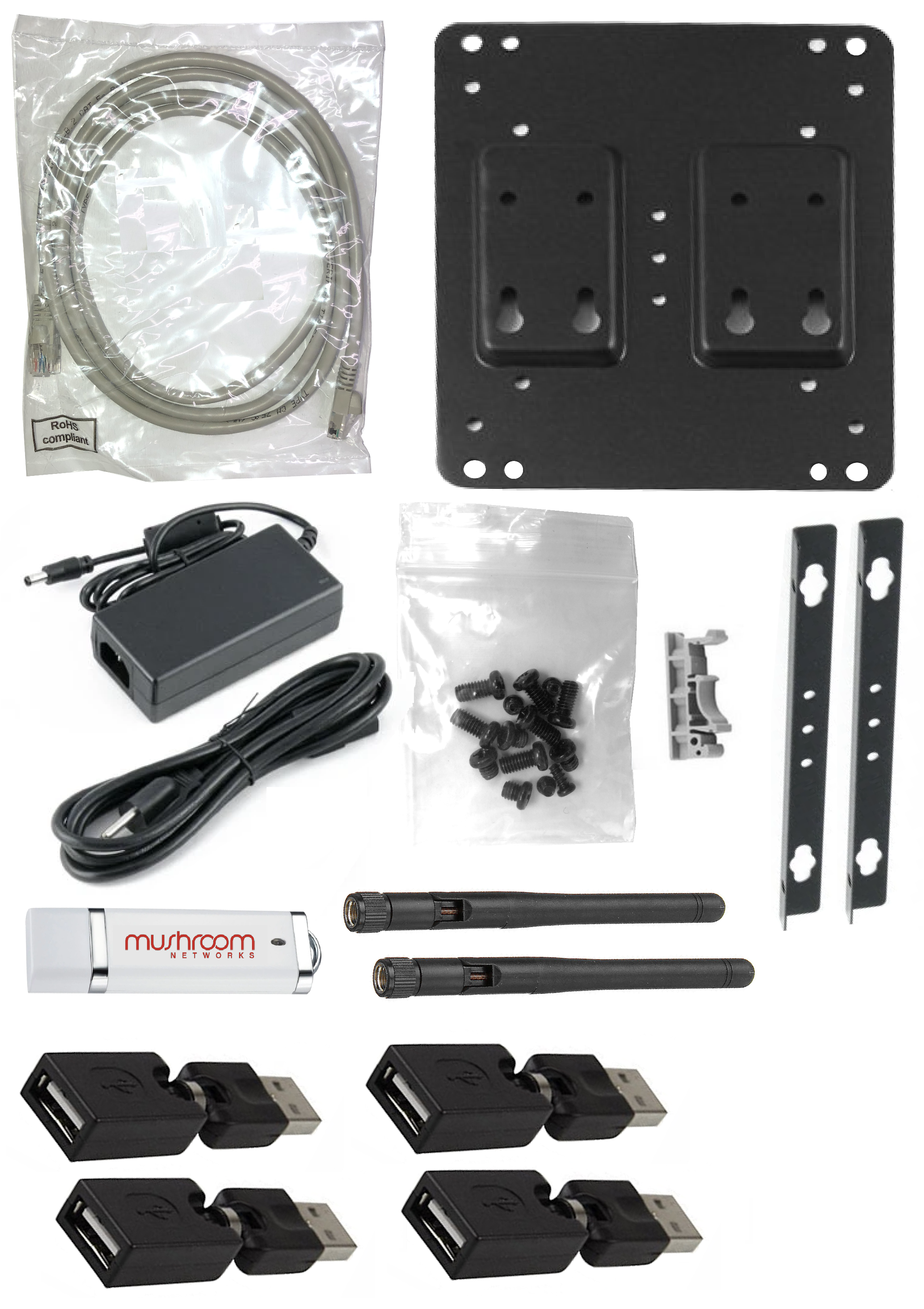

Below is the list of accessories we ship with the unit:

– (1) RJ45 Crossover Cable
– (1) USB Reset Key

– (1) Mounting Plate
– (1) DIN Rail Mount

– (1) Elbow Bracket
– (1) US/UK/EU Power Cord
– (1) 12VDC Power Adapter
– (4) USB Elbow Extenders
– (2) WiFi Antenna
