Hub and spoke (star topology) VLL configuration example.

Virtual lease line (VLL)

VLL allows bonding of WAN connections to another BBNA in order to transparently join LANs. One end is configured as a server and the other as a client. Client and server subnets must differ.

For the VLL connection one site must have static ip address.

HQ Mushroom WAN status ( server )



Configuration

In order to configure a VLL tunnel, a pop-up menu form must be filled out within the GUI for each of the two Mushroom BBNA devices. On the HOME tab of the Mushroom BBNA Management Interface, this form will appear by clicking on the “Add Remote LAN” button.

Select connection mode server and give connection name, password and remote subnet.

Once the form has been completed, click ADD to complete the VLL configuration for that BBNA. The VLL parameters can be edited by clicking on the name of the VLL tunnel in the Remote LAN table of the HOME  tab.

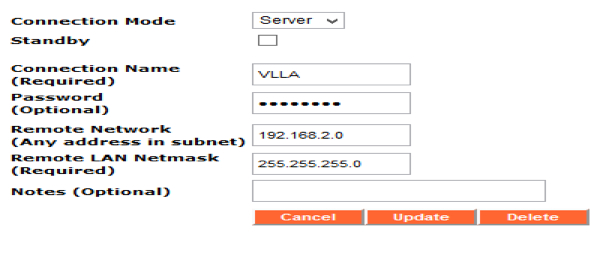

HQ Mushroom > Home tab > Add Remote LAN>

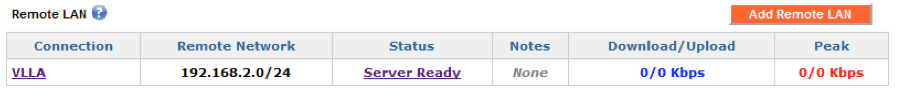

Once you click update you should see the following status:

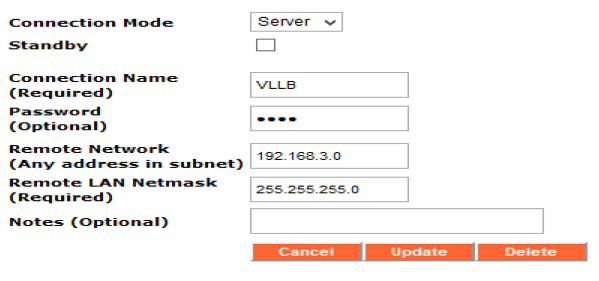

Add second remote network with the same steps, i.e.

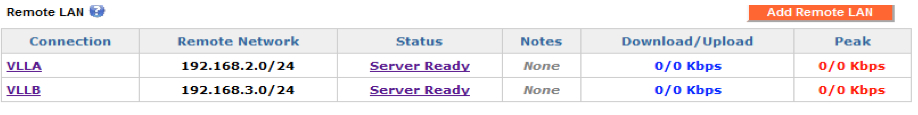

Once you click update you should see the following status:

Remote Site A

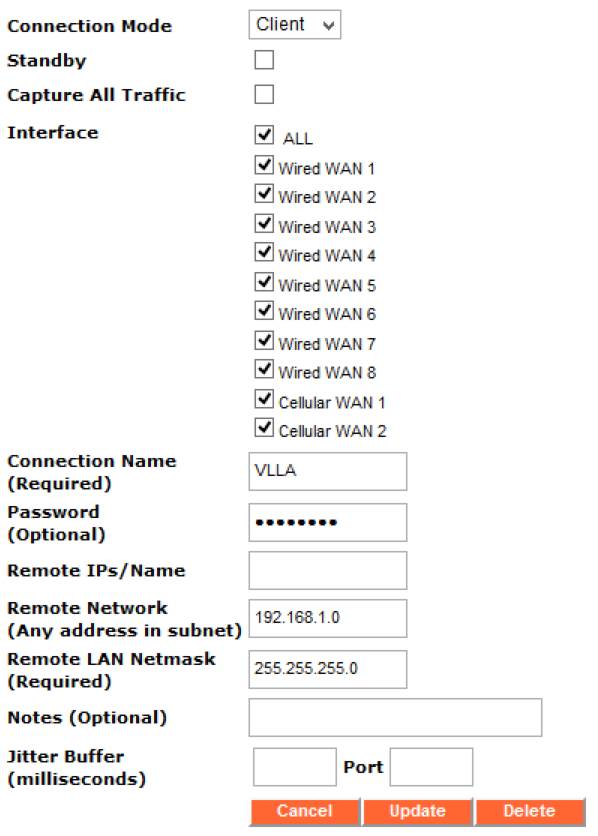

Remote site Mushroom > Home tab > Add Remote LAN>

Click Add. You should see the following status

Add VLL Route.

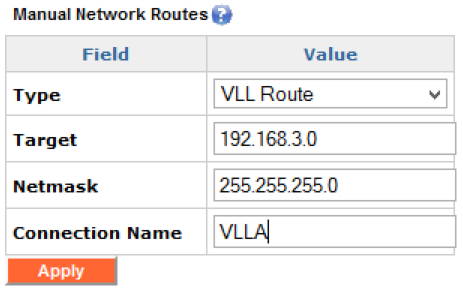

Remote site Mushroom > Advance  > Manual network route >add

Click apply and you should see the following status:

Remote Site B

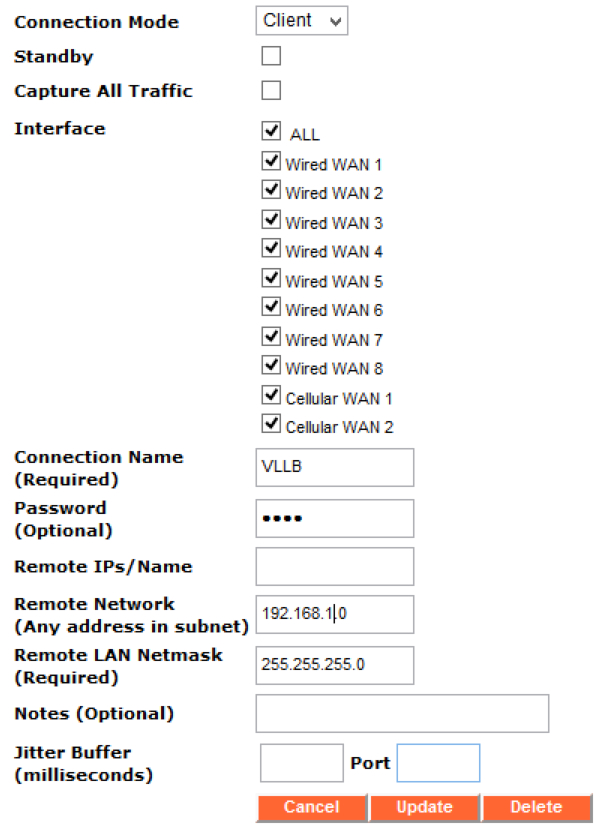

Remote site Mushroom > Home tab > Add Remote LAN>

Click Add. Check the status:

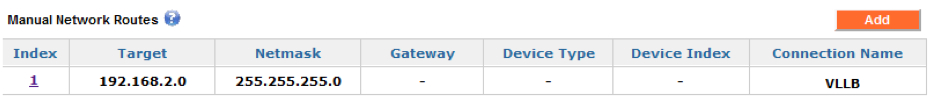

Add VLL Route.

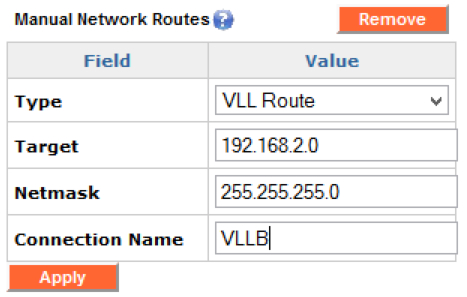

Remote site Mushroom > Advance  > Manual network route >add

Click Apply and check the status:
