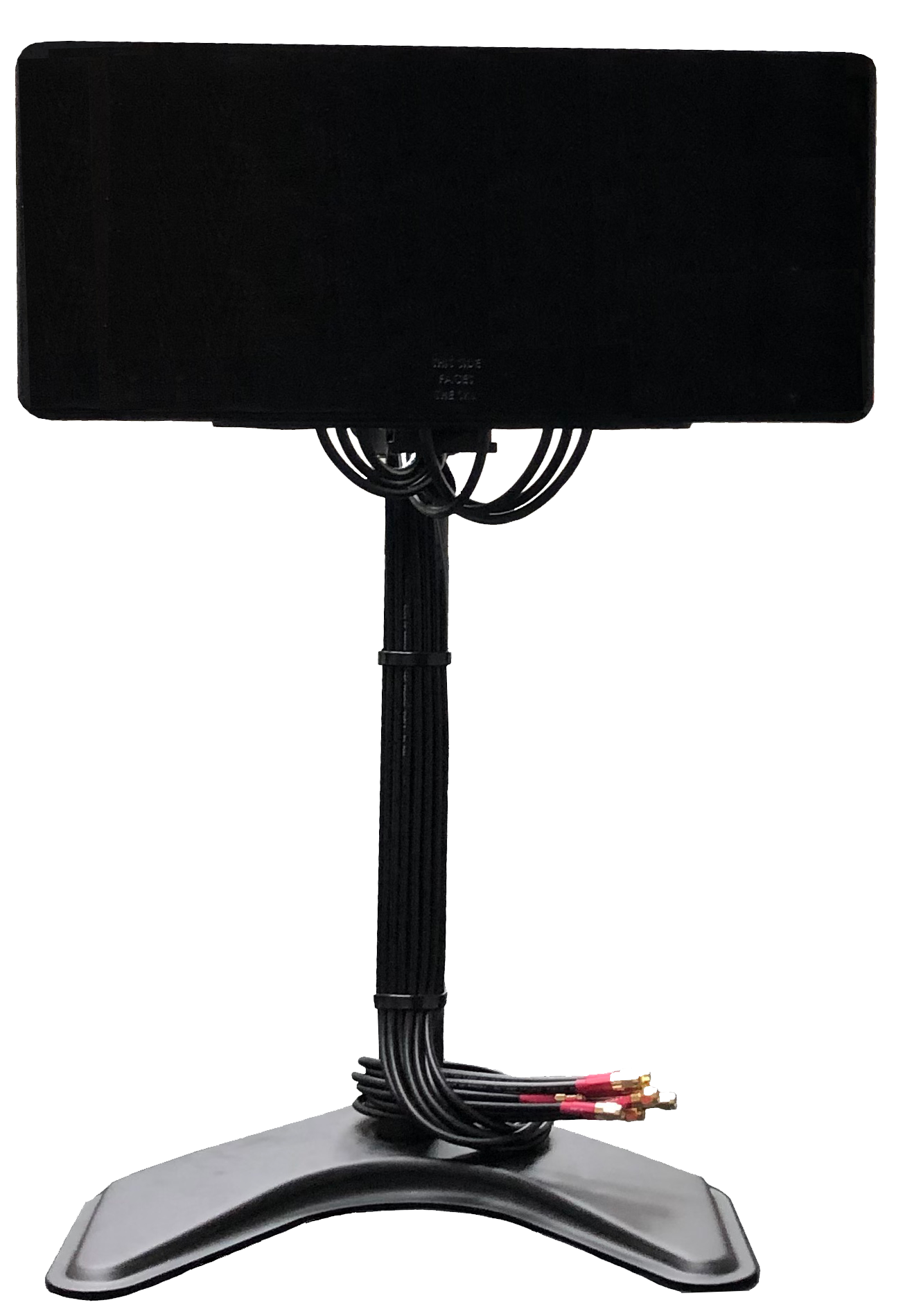

How do I install the Panel Mount Antenna?

1. Antenna Stand Assembly(see the attached video).

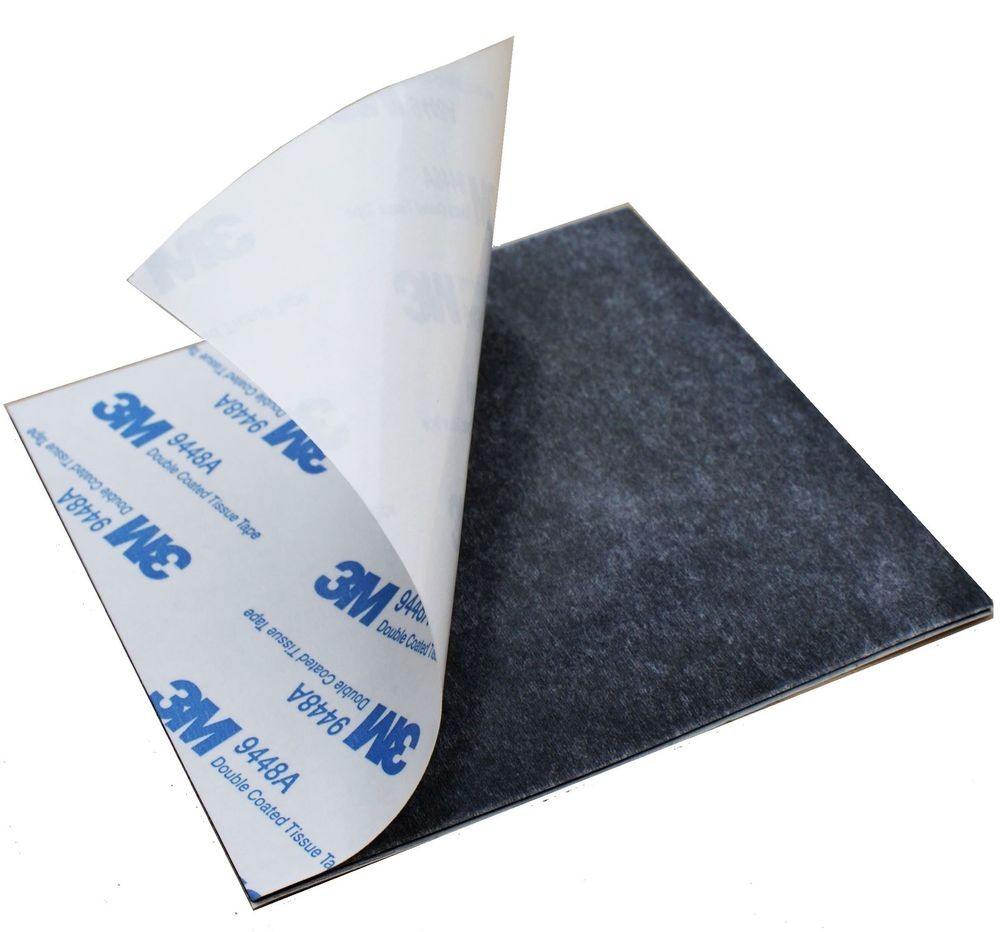

2. Use the double sided adhesive (included with the antenna packaging) to attach the antenna to the stand.

3. Panel Antenna Connection Guide

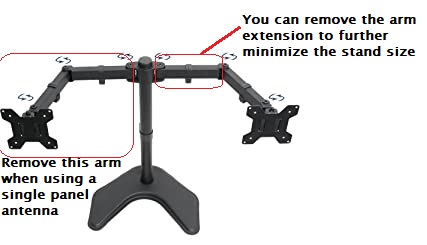

4. If using a Single Panel Antenna, you can modify the stand to make it smaller.
