DIN Rail Mount for 4000i Unit

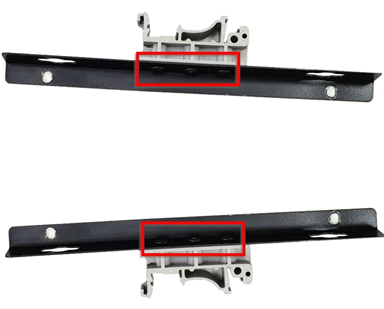

1. Attach the plastic DIN Rail mounting brackets to the two metal side brackets, using 3 screws per bracket, as shown:

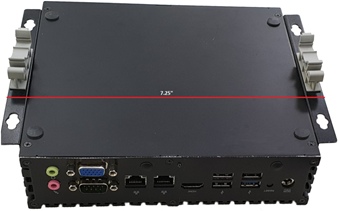

2. Attach the two metal side brackets to the 4000i, using 2 screws per bracket, as shown:

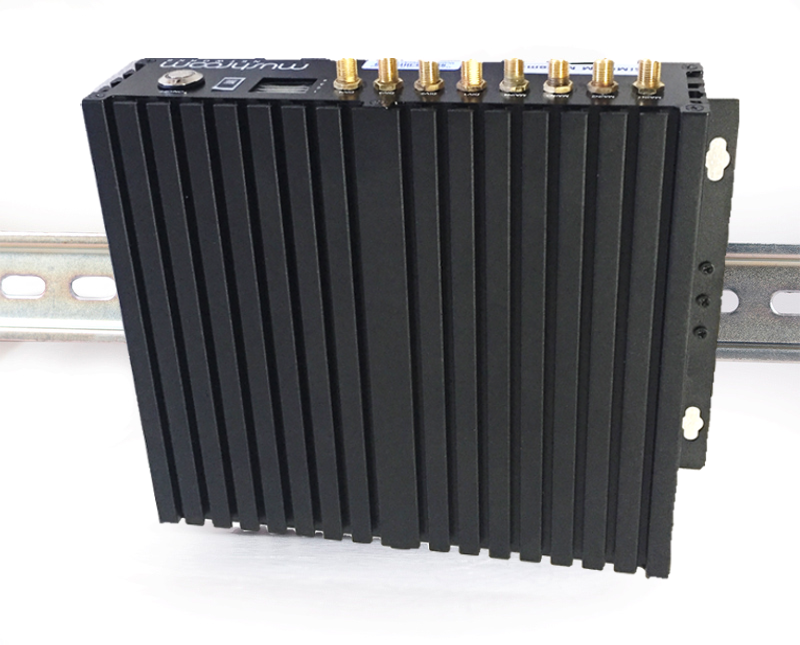

3. Attach 4000i unit to DIN rail, as shown:
