How can I have multiple/additional subnets on WAN interface in passthrough setup?

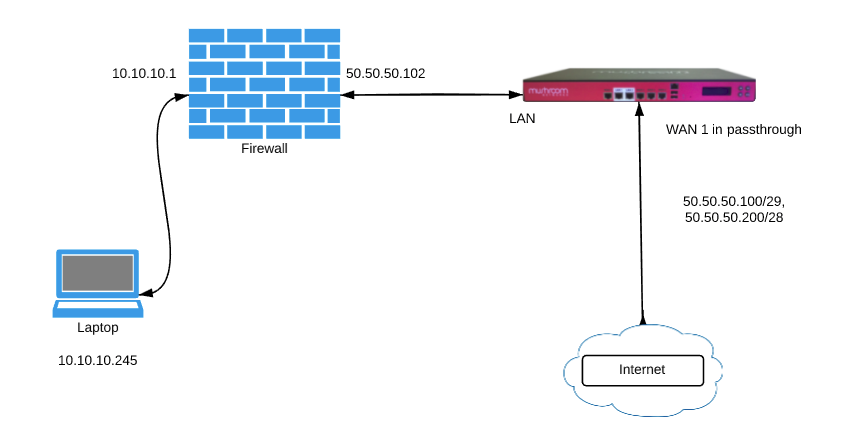

The scenario of having multiple subnets on WAN interface, which is configured as pass-through, would be as shown in the following picture:

mceclip2 2

This can be setup by configuring manual routes as shown in the following steps:

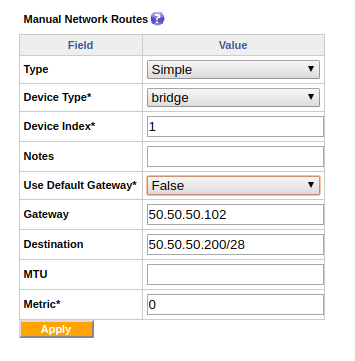

Step – 1 Simple manual route in the “ADVANCED” tab as shown below:

mceclip8 1

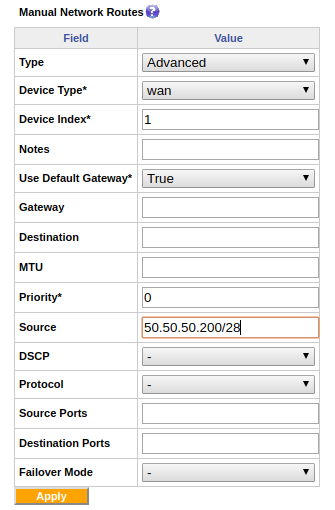

Step – 2 Advanced manual route in the “ADVANCED” tab:

mceclip0 6

Step – 3 Applying no-NAT for packets returning from WAN1, under the FIREWALL tab:

mceclip1 1
