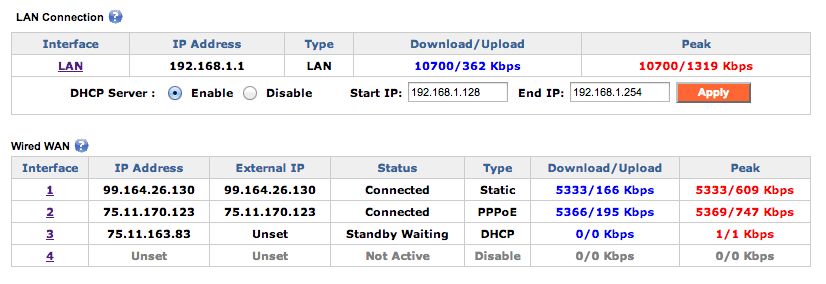

Downlink and Uplink Bonding in peered mode
- Truffle is a Software Defined WAN (SD-WAN) load balancing router with packet level aggregation. Truffle bonds Internet access lines for all types of traffic (including encrypted traffic such as VPN) for aggregated downlink and uplink capacity when peered over the Internet with another Truffle located at the headquarter office or data center. For single office setups optional Broadband Bonding Service subscription enables downlink/uplink bonding.
- All HTTP downlink sessions are aggregated for faster transfer via the Broadband Bonding WAN aggregation technology. Truffle is a load balancing router with packet granularity aggregation. Even in cases of single HTTP session (an example of such a session is a single file download), all Internet access lines are simultaneously and intelligently combined together to provide a faster data transfer for that single session.
Self Healing WAN for High 9s Network Reliability - In case
of Internet access line failures, the Truffle keeps the
ongoing sessions alive by making real-time per-packet
routing decisions, even for the sessions in progress (in peered mode),
without loss of data integrity. Additionally automatic
failover protects against failures of one or more WAN
link outages. Automated Domain Name Service (ADNS) optimization is used to maximize the utility of all active access lines, with automated email, syslog or SNMP alerts.
Application Armor with Session Keep Alive - When peered to a head-office Truffle Master unit, the Truffle Master unit monitors and intelligently reacts in realtime to mitigate any performance degradation caused by the WAN links at the branch offices. Managed parameters and network problems include packet loss, latency, jitter, cross-traffic, buffer management, MTU problems, black holes as well as others. In case of packet loss, spike in latency or any other degradation on any of the WAN links at the branch office, the VLL tunnel between Truffle and Truffle Master maintains the ongoing IP sessions without loss of performance by shielding the effects of dropped WAN link, lost packets, high latency on any of the links.
Virtual Interfaces with Customizable WAN and Traffic Management - Truffle supports virtual interfaces that have load-balancing and failover logic layered on top of the real physical WAN interfaces. Specific type of traffic can then be selectively filtered onto the virtual interface to take advantage of the load-balancing and failover capabilities of the virtual interface.
Elastic Static IP - A static IP in the cloud is provided
as part of the optional Broadband Bonding Service and
is mapped onto the Truffle. This means that static IP is
available for services and inbound network access even
during WAN outages, as long as at least one of the WAN
links is up.
Strong AES Encryption - Truffle bonding tunnels have built-in security option with AES 256 encryption.
Cellular 3G/4G WAN connection - Truffle supports 2 USB ports for cellular 3G/4G data cards. The cellular data card dongle can be configured as a fail-over-only or always-on WAN connection. In fail-over mode, in case of all the wired Internet access lines fail, the cellular data card will take over in less than 30 seconds.

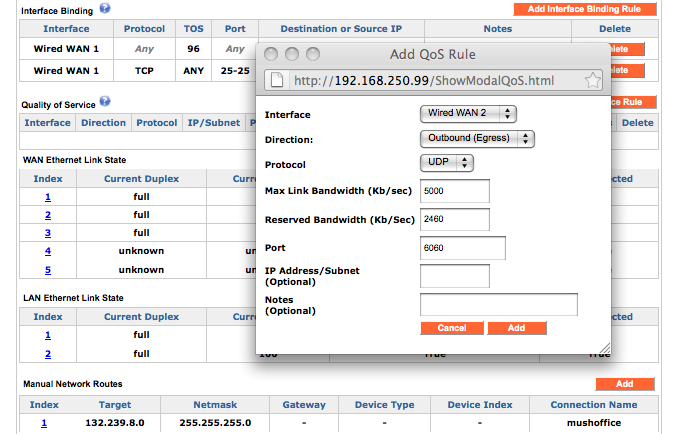

Advanced Quality of Service (QoS)
- Various adaptive quality of service features enables dynamic bandwidth reservation for your selected applications and traffic types, that adaptively reserves bandwidth only when that traffic type is detected. You can also limit inbound/outbound traffic to defined bit rates, bind certain traffic types on to specified WAN links, manipulate traffic based on TOS identifier, block certain traffic types and much more.

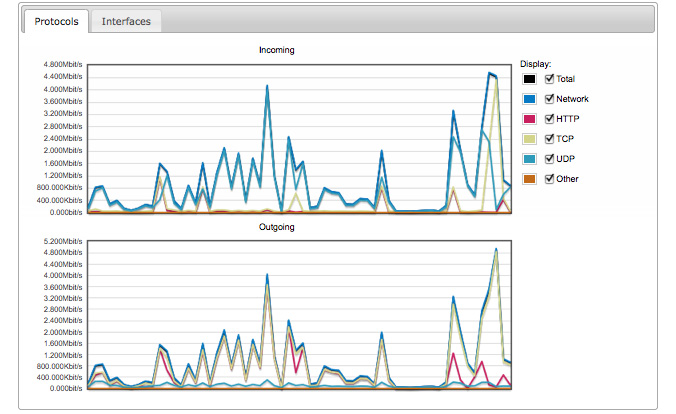

Traffic Shaping, Monitoring & Alerts
- A history of your traffic usage based on type, prototcol, interface or layer 7 deep packet inspection identification are presented with multi-color graphs with a time scale from seconds, minutes, hours, days and months. Various realtime and nonrealtime traffic types can be filtered and shaped. SNMP
or non-SNMP alerts provide in depth network visibility and intelligence.
Intelligent session-based load balancing - In peered mode, Truffle will bond all types of traffic in downlink and uplink. Without peering, non-HTTP downlink sessions and all uplink sessions initiated from the Local Network, will be session based load balanced intelligently across the WAN lines. The application and cookie semantics will be preserved.
DNS Load Balancing for Inbound Requests - Truffle can easily be configured to provide Dynamic DNS load-balancing for inbound requests for internally hosted servers such as web-servers, ftp-servers, mail-servers etc.
Website Blocking and DNS Redirection - Truffle can block unwanted websites or can redirect DNS requests to a user defined URL or IP address.
Pass-through installation – For installing Truffle into your existing network, no changes are required at your firewall or network. Simply slide in the Truffle between your existing network/firewall and your existing modem and add the additional WAN links as you need. All the installation and configuration can be done through the web-based management interface locally or remotely.
No Coordination with ISP - With the Truffle, no new equipment or software is necessary from your Internet Service Provider(s) and all ISPs are supported. A user-friendly web-based management interface is provided for quick and easy configuration and system monitoring, either locally or remotely over the Internet.
Built-in Firewall & Router – Truffle can be configured
either in pass-through to function inline with the existing
legacy firewalls/routers or, if preferred, can be installed
as the primary firewall/router.
To download the brochure for the Truffle (load balancing router with packet granularity WAN aggregation), please click here
To download the brochure for the new high performance Truffle E Series. Truffle EF and Truffle EC models with up to 16 WAN ports (fiber SFP or copper ethernet), please click here
To download the brochure for the new high performance Truffle EX Series with 10Gb fiber SFP port options, please click here
To download an application scenarios and ROI analysis white-paper, please click here
Please contact Mushroom Networks sales for the Truffle User's Manual and other documentation.
