How do I change the Default LAN IP address?

By default, the LAN interface of the BBNA is assigned the IP address 192.168.254.99 or 192.168.251.99 (for cellular products).

NOTE: It is important to remember the new IP address assigned to the BBNA LAN. It will not be possible to access the BBNA Management Interface without this information.

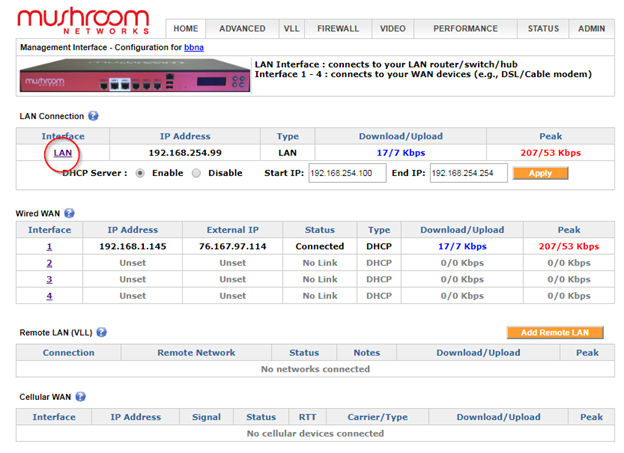

To change the LAN IP, please click on the HOME tab of the BBNA Management Interface. Click on the link “LAN”, highlighted with a red circle in the below screenshot.

Enter the new IP in the IP address field and click on ‘OK’. The device will reboot to save the changes. Please leave the Mask as 255.255.255.0, unless you want to change for know reasons.
