DHCP host configuration by MAC address

You can configure DHCP hosts, connected on the LAN side of Mushroom units, always to get the same assigned IP address using the MAC address to IP mapping.

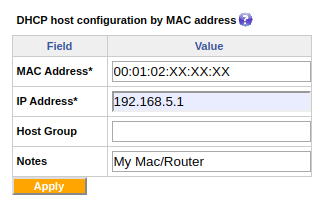

1) On the ADVANCED tab click on ‘Add’ in the DHCP host configuration by MAC address section.

2) Enter the MAC address of the Ethernet interface of your device that you are assigning the MAC-to-IP address mapping.

3) Then choose the IP address that you want to assign to your device. You can also add ‘Notes’ to this mapping for future reference.

4) Click ‘Apply’ to save the changes.
